Bending Frame Systems

4-Point Bending Frame Systems

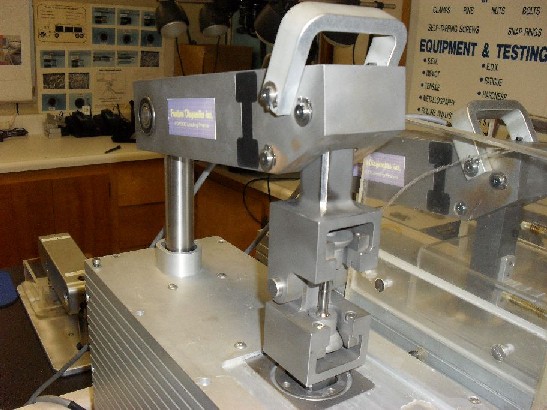

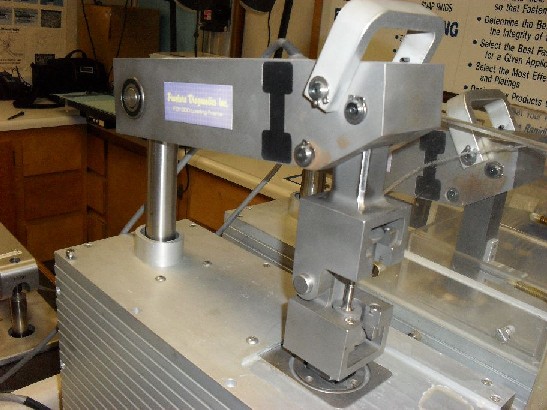

Model FDI 1200-B Rising Step LoadTM Bend Test System
Quality Monitoring Using a Bending Moment

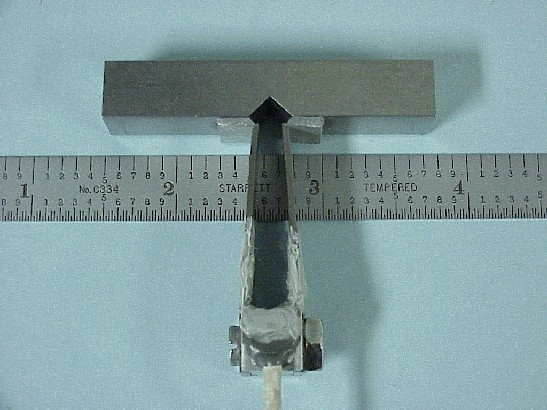

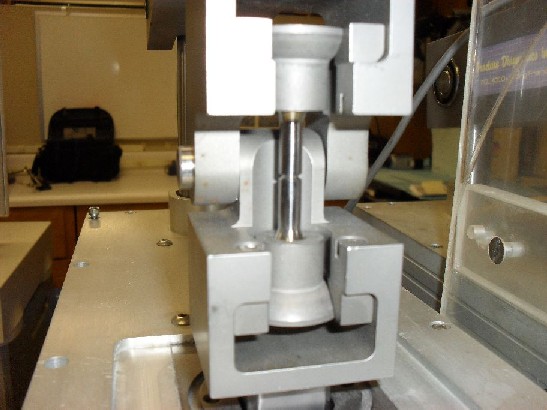

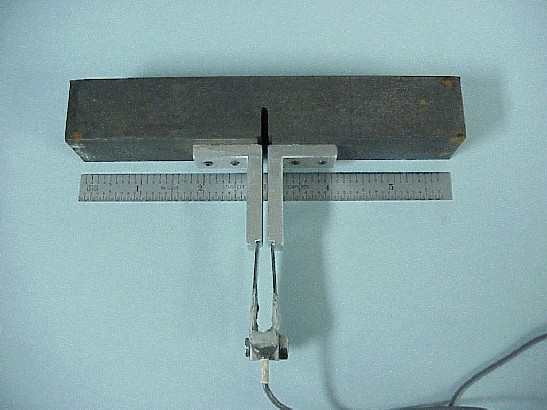

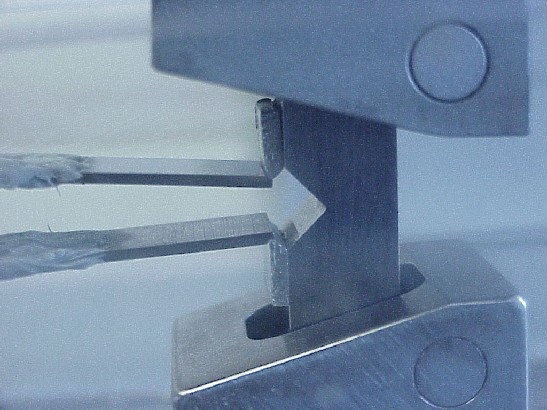

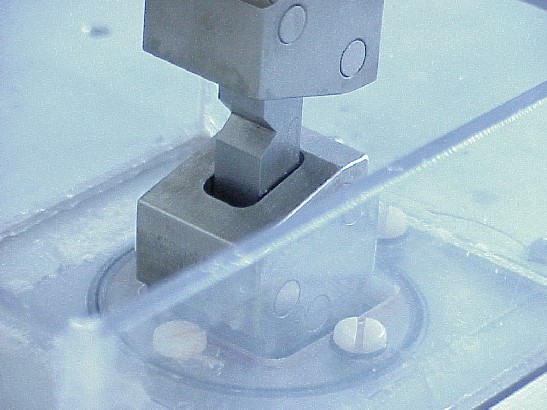

This unit utilizes a constant displacement bending arm precisely controlled through software developed especially for this equipment. Although designed for ASTM F519 testing, by combining its use of 4-Point Bending and various fixtures, the versatile FDI 1200-B test system can perform a broad variety of tests, including quality control tests for plating in bending on single edged notched square bars, and with the right fixtures, the same bend frame can test actual parts such as Fasteners, even C-Rings in compression and Tensile Coupons in tension!

With the use of Certified Test Specimen, in 24 HOURS, you can QUANTITATIVLY measure the hydrogen generated by any specific plating process QUICKLY giving you useful information to help you improve the quality of your parts or plating baths.

The software uses a graphical interface combining a unique control of all testing parameters and simplicity of operation. Data generated can be filed into and analyzed by many standard data base programs.

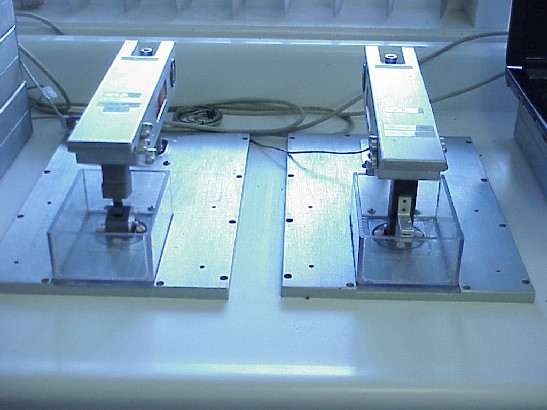

The actual bending frame is designed as a desktop unit and can be provided with several units custom mounted in a single cabinet.

This unit comes with a motor controller, a calibrated load cell, operating software, a computer capable of running multiple FDI Test Systems at the same time, and a 2-day installation and demonstration. An optional operating instruction course is also available.

Bend Frame Environmental Testing Upgrades

Bending Moment for Scientific Investigation and R&D

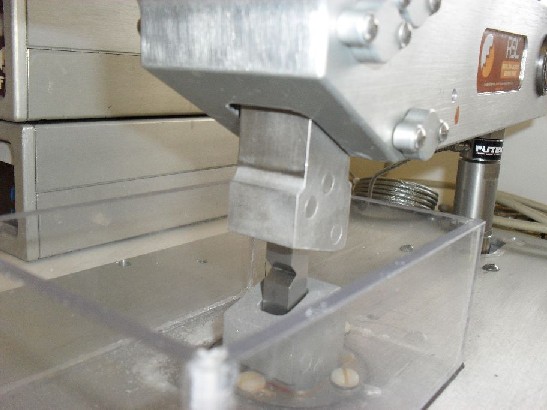

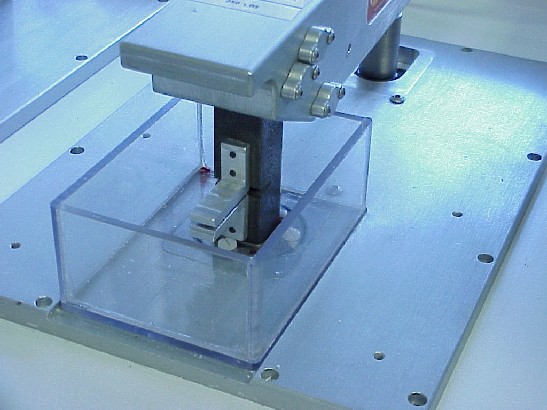

These upgrades take the Model FDI 1200-B but includes additional Scientific Software, a Scientific Controller, an Environmental reservoir, a Platinum Electrode, and a Ag/AgCl Reference Electrode. This allows the Bending Frame to become a powerful research and investigative tool able to emulate field conditions and measure the response of materials, Parts or substrates. With this capability, it is possible to determine if a material, part or substrate is already embrittled by hydrogen; if it would be susceptible to embrittlement when used in real world applications; as well as its behavior in a worst case scenario all at a rate capable of over 1000 tests a year.

This unit comes with a Motor Controller, calibrated load cell, Scientific Controller, Environmental reservoir, Platinum Auxiliary Electrode , and a Ag/AgCl Reference Electrode, upgraded Scientific operating software, a computer able to run multiple FDI Testing Systems at once, and a 2-day installation and demonstration. An optional operating instruction course is also available.

TEST CAPABILITY:

CONSTRUCTION:

Rising Step Load™ Incremental Step Load per ASTM F1624/F1940 Stainless Steel and Aluminum
Sustained Load per ASTM F519 Height: 12"
Constant Displacement Width: 9.5"
All other standard bend tests Weight: 75 pounds
============================= Power: 110/125 Volt AC
============================= 50/60 Hz Single Phase
